32A portable electric car charger with type2 plug

Products Descriptionmode2 32a ac portable car ev charger wallbox for electric ve
Send Inquiry
Products Description
Products Description
mode2 32a ac portable car ev charger wallbox for electric vehicle charging
*Adjustable current
Customers could adjust different current as required.
6A/8A/10A/13A/16A/20A/32A,there is always one for you.

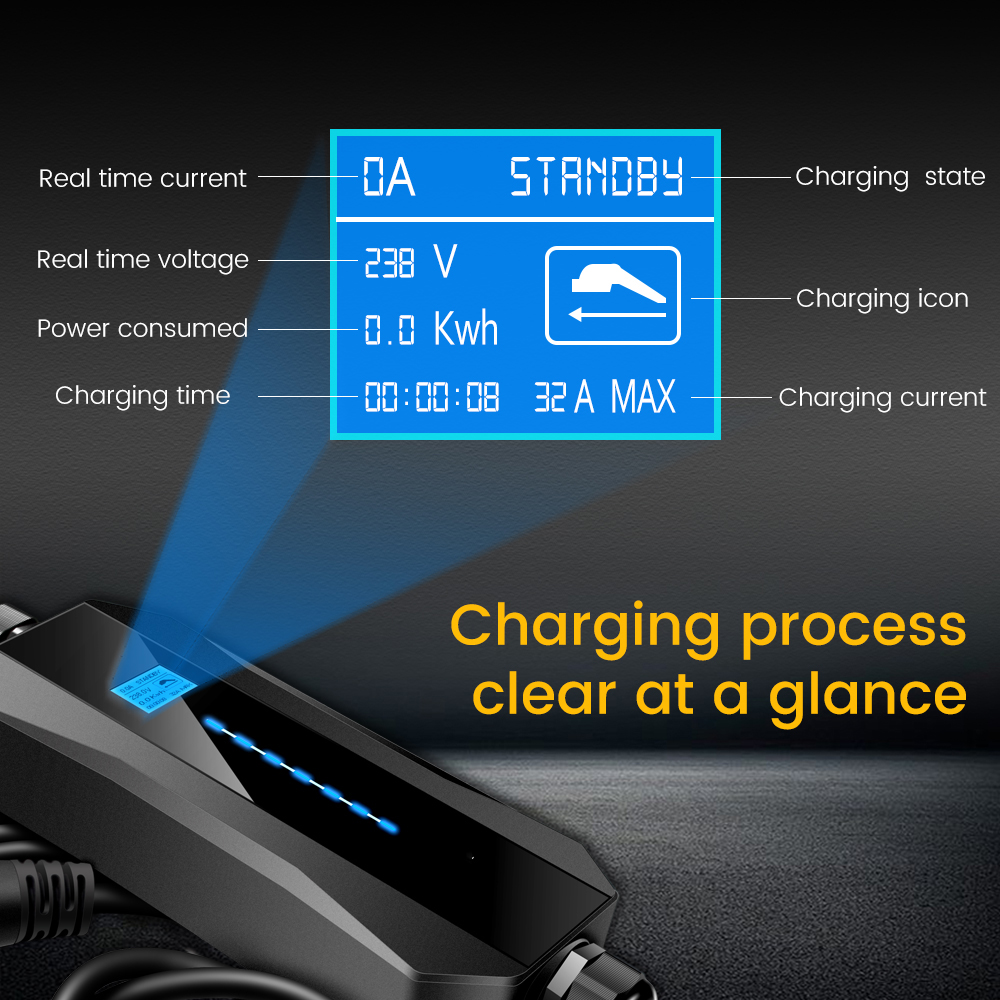

*LED display
LED display could you show all real-time charging status,including time,voltage,current power and temperature
*Smart inegrated control-box
The inside integrated circuit board is equipped with protection outomatically device,it can send the instruction to keep the normal work,such as over-current&over-temperature.
*High security assurance
Approved the strictly test of TUV authority,including water-proof test, cush test, high&low voltage test, high&low temperature test and etc to ensure safe amd realiable use.

Product Paramenters
Product model
TS-PEC-002
Install
Portable Plug and play
Standard
SAE J1772,IEC 82572,EN 62196-2,IEC 61851-1
Rated Voltage
120V/250V
Rated Frequency
50Hz/60Hz
Adjustable Current
8A/10A/13A/16A/20A/32A
Rated power
7.4KW
Chagrging cable length
5m or customization
Operating temperature
-30℃ to 65℃
Storage temperature
-40℃ to 80℃
Protection class
IP67
Control Box size
255*109*55mm
Weight
4.0KG
Protection
1.Short circuit protection
2.Leakage current protection
3.Over voltage and under voltage protection
4.Over and under frequency protection
5.Over current protection
6.Over temperature protection
7.Ground protection
8.Lighting protection
