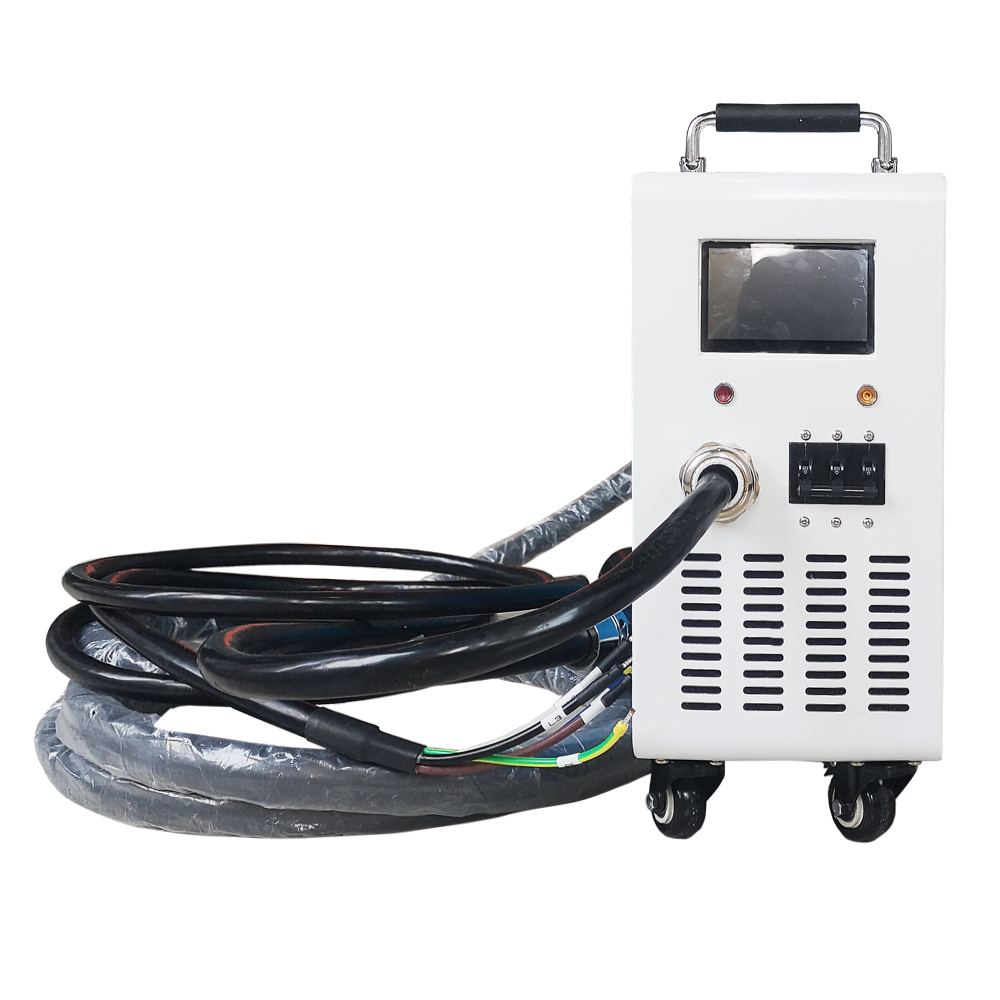

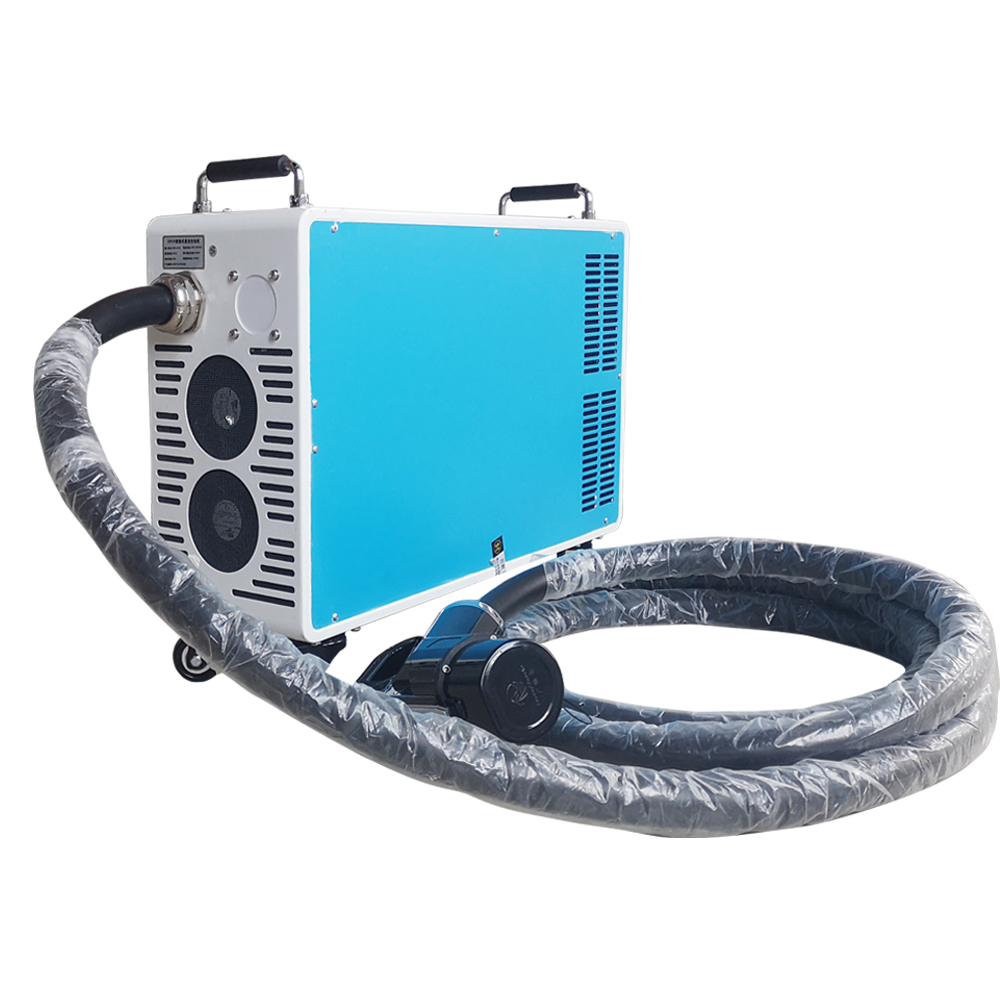

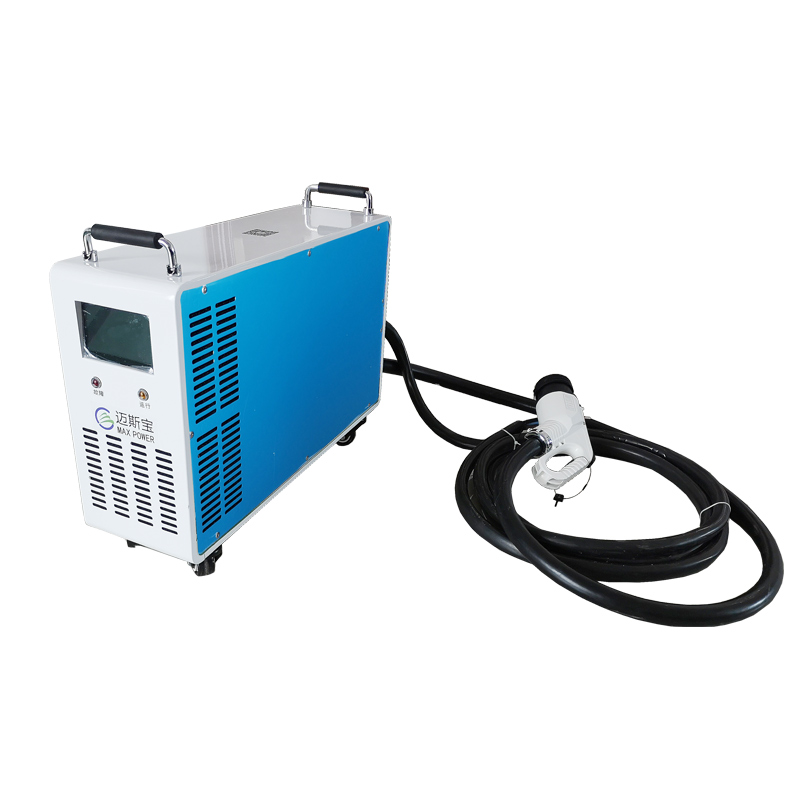

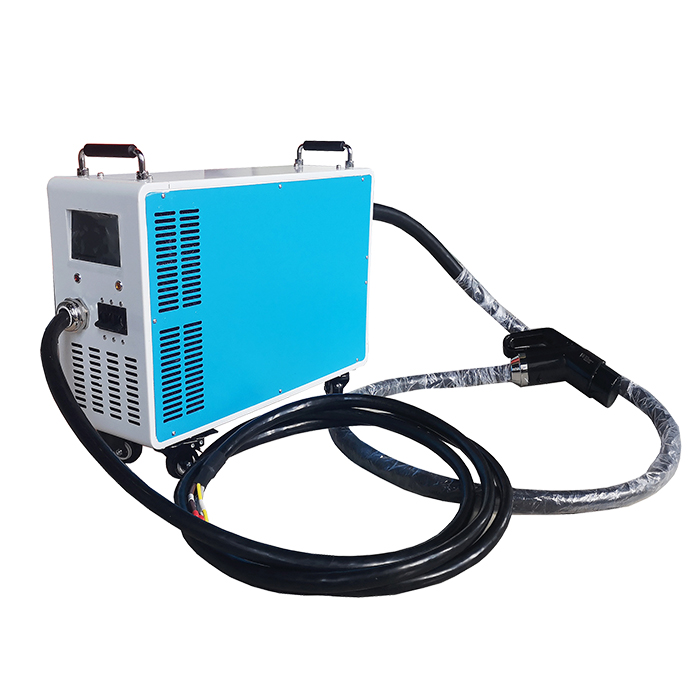

• The 40KW portable charger with input voltage of 380V, touch screen display, standard 4.3inch display screen, easy to use, rated output power of 30KW, waterproof and dustproof function, multiple safety protection, can be selected with customized rainproof cover, suitable for outdoor mobile use.

• It is composed of monitoring module, power module, lightning protection unit, charging interface, human-computer friendly interface and so on.

• High performance charging module, super wide charging range, super full load working efficiency.

• You can also customize the production according to the vehicle BMS parameters.

产品型号/model

MXPC40750

输入电压范围/Input Voltage

260-475V，380V（TYPE）

输入电流/Input current

80A

输入线长/Input cable lengths

5M线长可定制/5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable

输出功率/Output power

40KW

输出电压范围/Output voltage

200-750V

输出电流/Output current

0-66A/0-120A

充电枪线长/Output cable lengths

3M线长可定制/Support for customized

效率/Eff.

95%

辅助电源/Auxiliary power

12V/24V

工作温度/Operation temperature

-40~85℃，25℃（TYPE）

存储温度/Storage temperature

-40~85℃，25℃（TYPE）

防护等级/IP

IP43

尺寸大小/Size（mm）

570×190×350

整机重量/Weight（KG）

52KG
