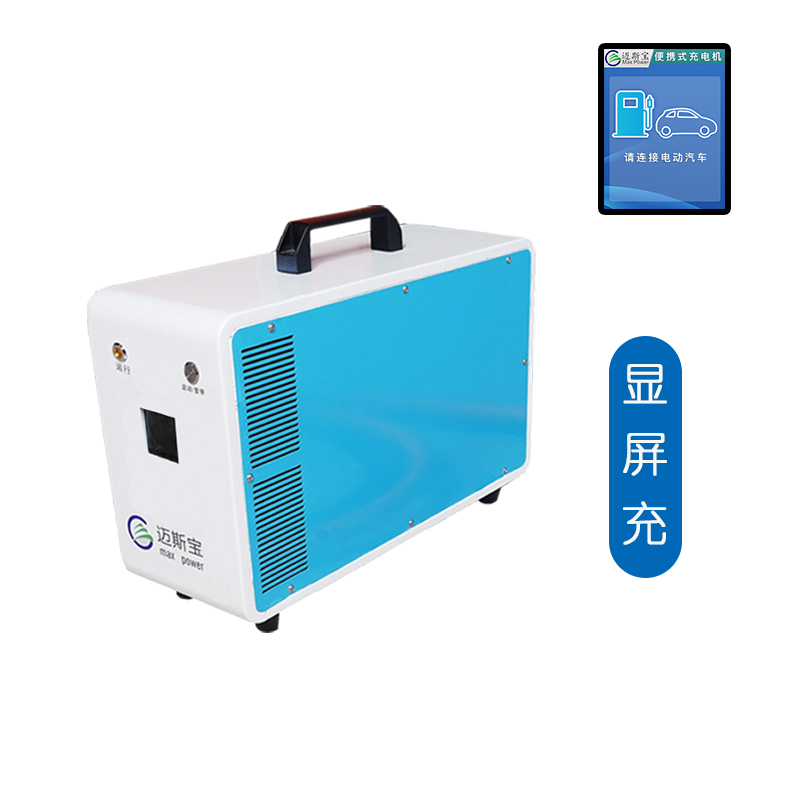

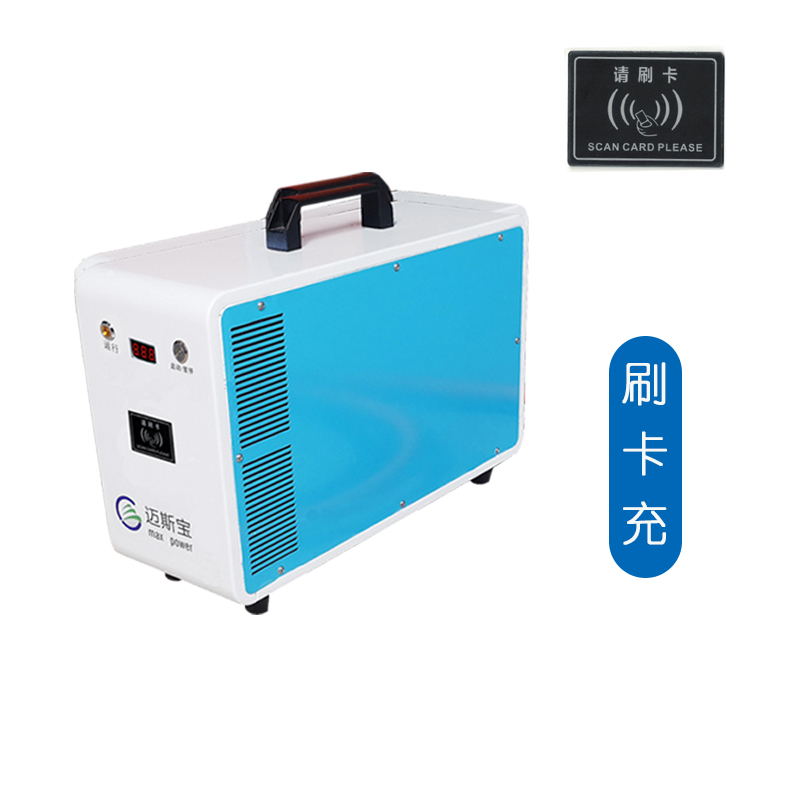

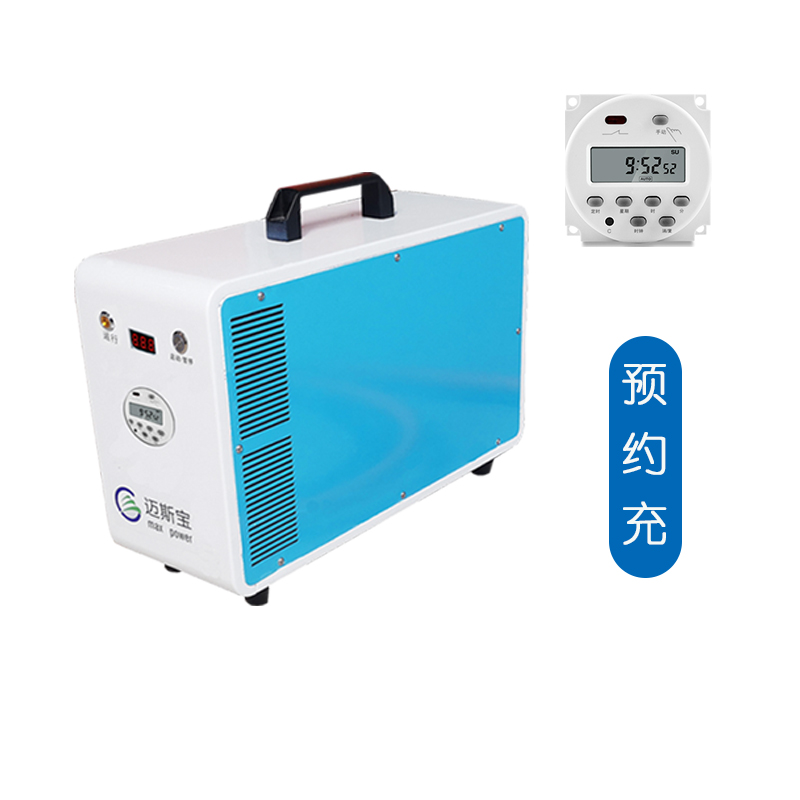

• The 7KW portable charger is easy to carry, the input voltage is 220V, and it is not limited by the site. It can be charged for the electric vehicle at any time. The rated output power is 7KW, and it can be used indoors.

• By monitoring module, power module, lightning protection unit, charging interface and man-machine friendly interface.

• Adopt high-performance charging module, maintain 20A output in the voltage range of 200-350v, and maintain 7KW constant power in the voltage range of 350-750v.

• Small size, light weight, convenient, efficient service.

• CHAdeMO, CCS, GB/T

产品型号/model

MXPC7750S

输入电压范围/Input Voltage

90-265V，220V（TYPE）

输入电流/Input current

32A

输入线长/Input cable lengths

5M线长可定制/5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable

输出功率/Output power

7KW

输出电压范围/Output voltage

200-750V

输出电流/Output current

0-20A

充电枪线长/Output cable lengths

3M线长可定制/Support for customized

效率/Eff.

95%

辅助电源/Auxiliary power

12V/24V

工作温度/Operation temperature

-40~85℃，25℃（TYPE）

存储温度/Storage temperature

-40~85℃，25℃（TYPE）

防护等级/IP

IP43

尺寸大小/Size（mm）

450×149×250

整机重量/Weight（KG）

18KG
