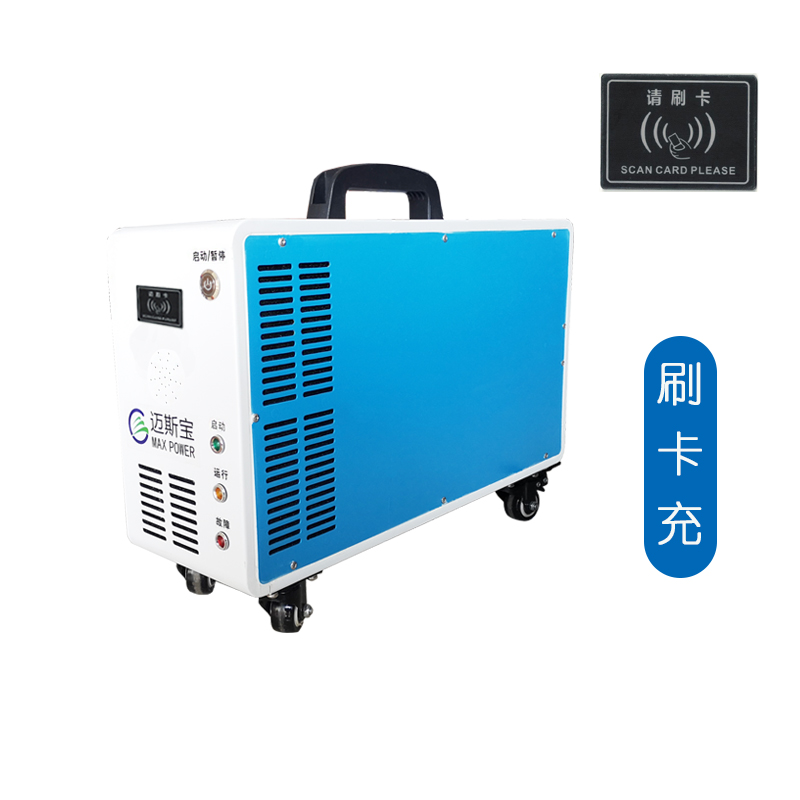

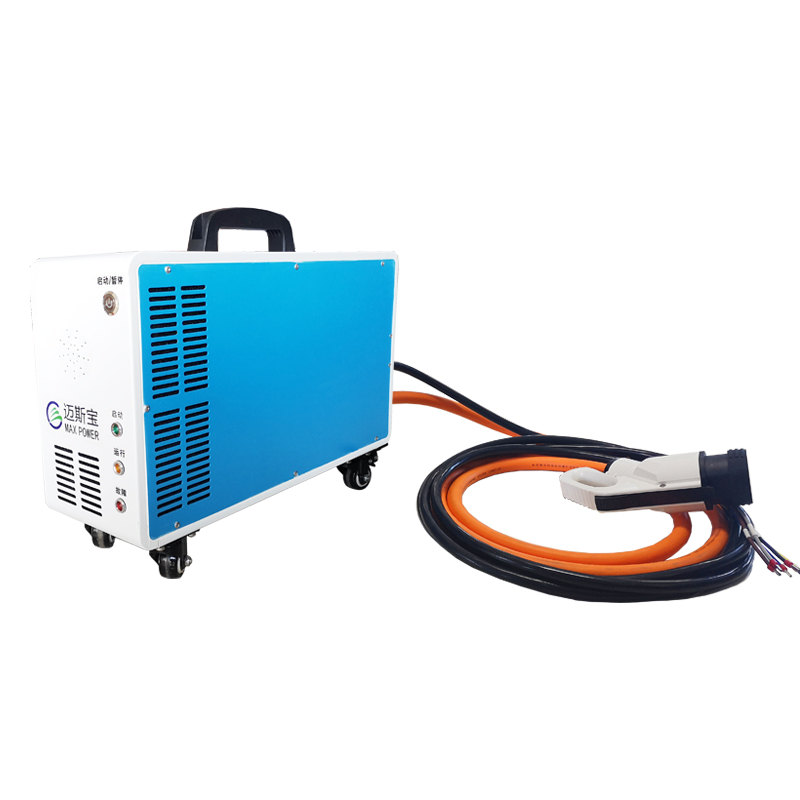

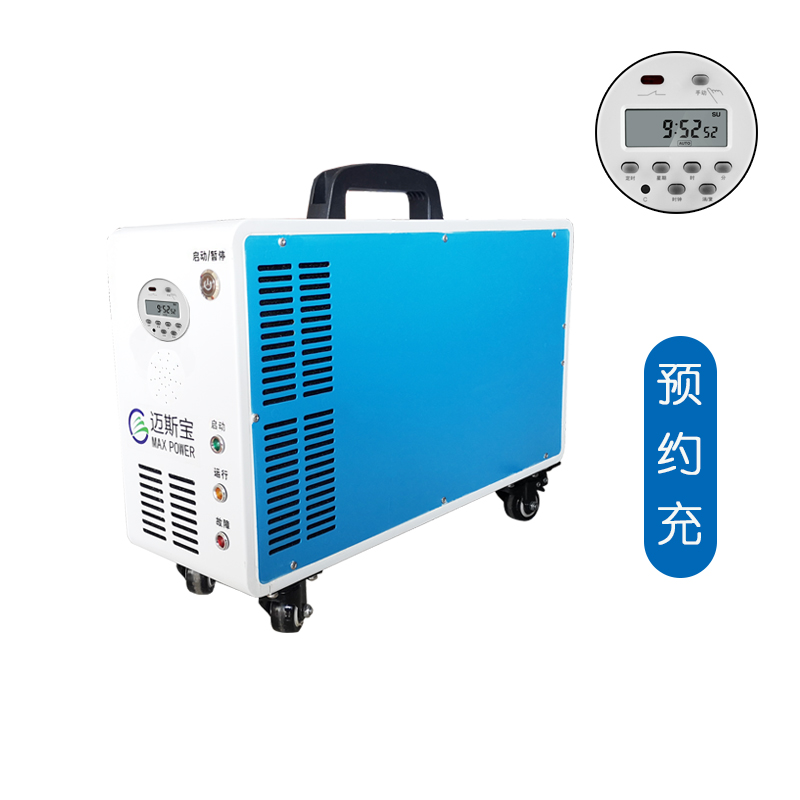

• This charger is great formounting in your garage,business, racing, or RV park. It isvery useful to have as a backup charger for use on the race track, in a towtruck, in an SUV, trailer or anywhere you need power.

  This affordable 7-30 KW DCFC is perfect to install for charging electricvehicle at maximum speed as well as many EV cars. take on road trips throughrural areas with RV or industrial areas being the main power sources forEV travelers.This unit will greatly speed up you or your customers charging.

产品型号/model

SC07750/LC07750

输入电压范围/Input Voltage

90-265V，220V（TYPE）

输入电流/Input current

32A

输入线长/Input cable lengths

---

输出功率/Output power

7KW

输出电压范围/Output voltage

200-750V

输出电流/Output current

0-20A

充电枪线长/Output cable lengths

5M线长可定制/(CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable

效率/Eff.

95%

辅助电源/Auxiliary power

12V/24V

工作温度/Operation temperature

-40~85℃，25℃（TYPE）

存储温度/Storage temperature

-40~85℃，25℃（TYPE）

防护等级/IP

IP54

尺寸大小/Size（mm）

548×348×160

整机重量/Weight（KG）

20KG
