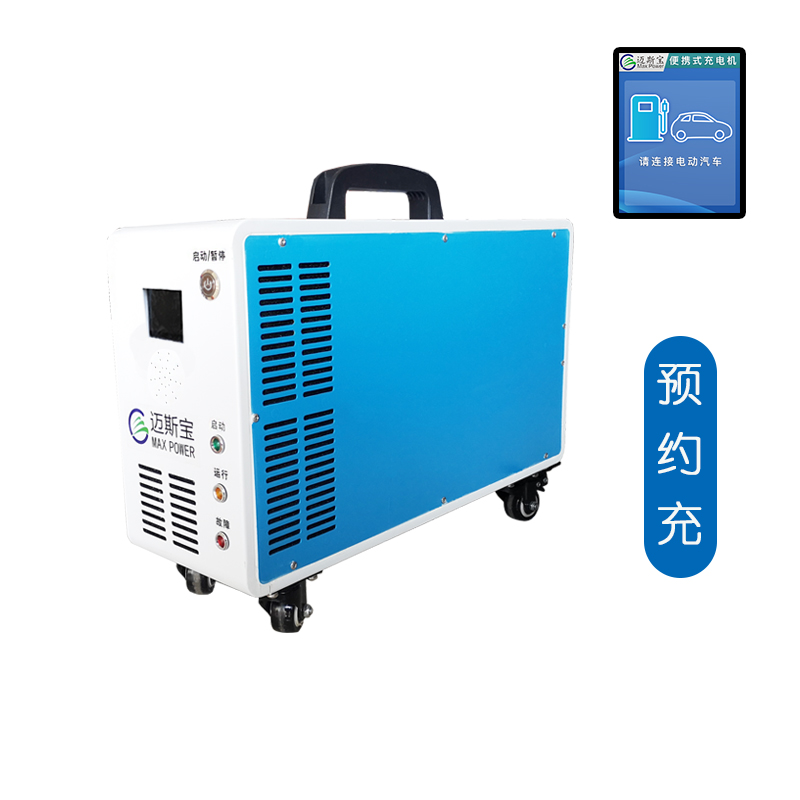

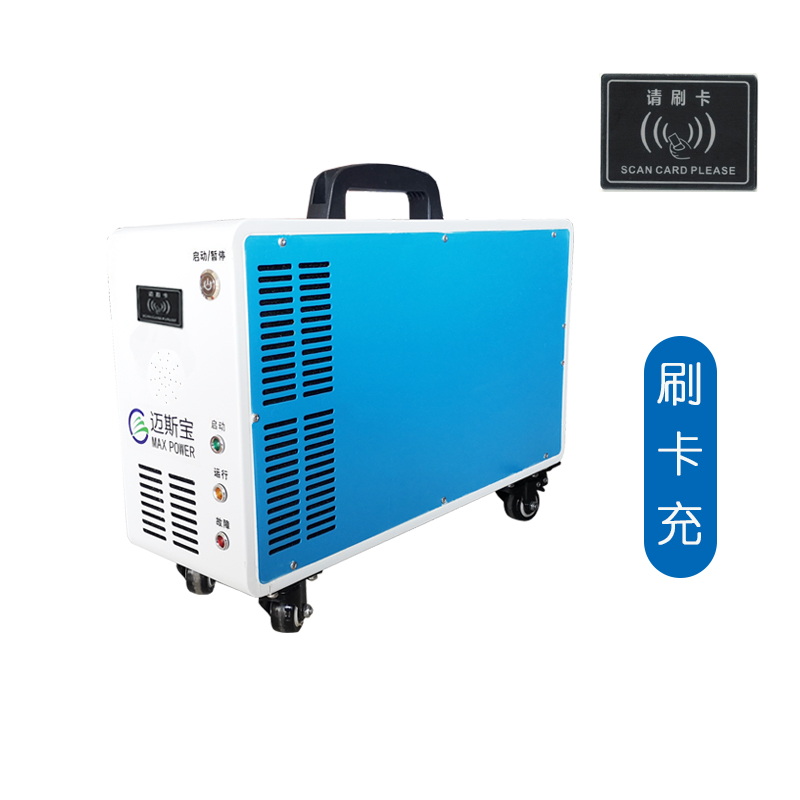

• Input voltage is 380V, voice navigation, easy to use, rated output power is 20KW, with waterproof and dustproof function, multiple safety protection.


• By monitoring module, power module, lightning protection unit, charging interface, etc.

• High performance charging module, super wide charging range, super full load working efficiency.

• Small size, light weight, fashion appearance, mobile, convenient and quick, voice navigation, easy to operate.

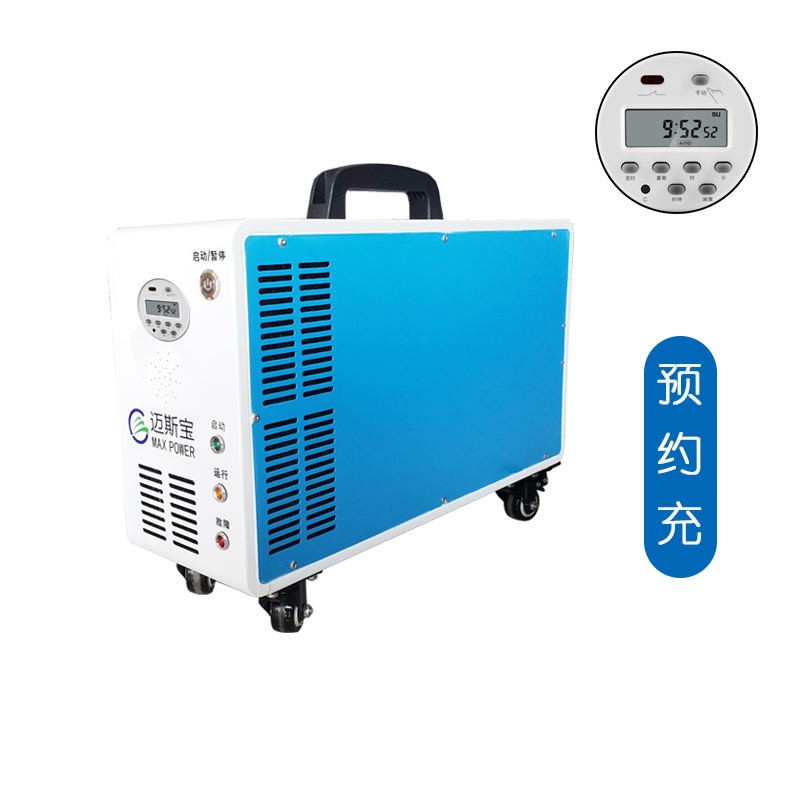

• You can also customize the production according to the BMS parameters of the vehicle, and you can customize the scheduled charging function.

产品型号/model

MXPC20750

输入电压范围/Input Voltage

260-475V，380V（TYPE）

输入电流/Input current

40A

输入线长/Input cable lengths

5M线长可定制/5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable

输出功率/Output power

30KW

输出电压范围/Output voltage

200-750V

输出电流/Output current

0-33A/0-60A

充电枪线长/Output cable lengths

3M线长可定制/Support for customized

效率/Eff.

95%

辅助电源/Auxiliary power

12V/24V

工作温度/Operation temperature

-40~85℃，25℃（TYPE）

存储温度/Storage temperature

-40~85℃，25℃（TYPE）

防护等级/IP

IP43

尺寸大小/Size（mm）

506×161×277

整机重量/Weight（KG）

27KG
